Current Position:Home > Product > GEGS STAINLESS STEEL MILLING DRUM

GEGS

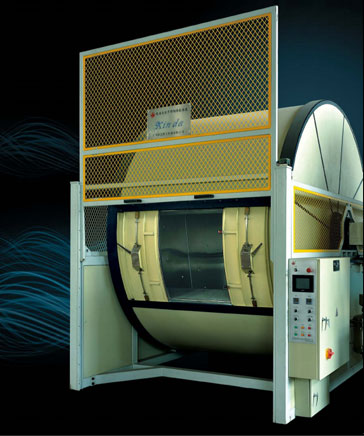

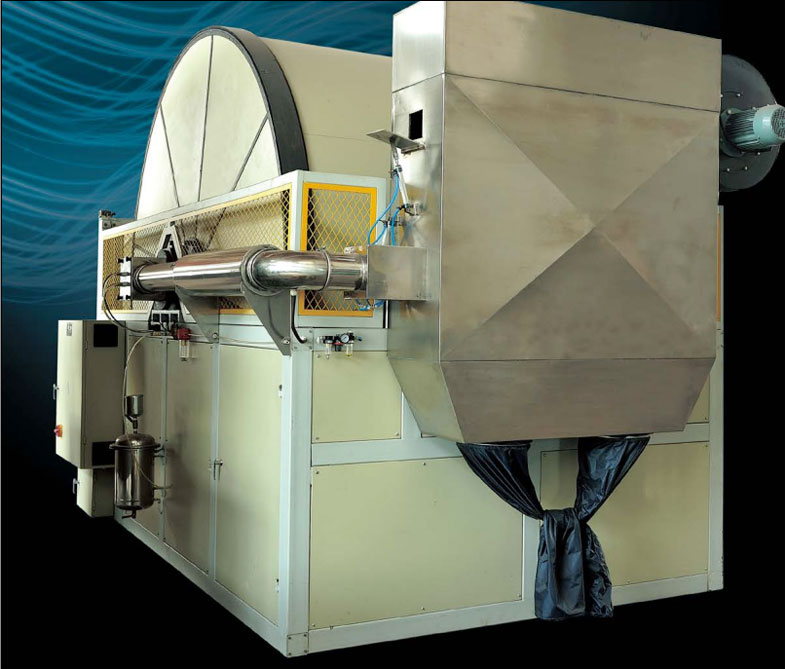

GEGS STAINLESS STEEL MILLING DRUM

MAIN CHARACTERISTICS

The stainless steel milling drum,developed by our company with the advanced technology of programmed pneumatic control,has such a series of functions like automatically intermittent positive and reverse rotation,automatic control of heat,temperature and humidity,automatic running,shutdown, delay start , automatic circulation de-dusting and dehumidification,etc.It is the indispensable equipment for producing high-grade soft leathers.

STRUCTURE AND CHARACTERISTICS

The machine is composed of the stainless steel inner drum,temperature-retention casing,chassis,driving parts and water-electricity-gas integrated auto-control unit.

1、The main drive system consists of magnetic plane brake motor and excellent quality gear reducer with hard-pitch surface.The drum body is to be turned in positive and reverse direction by linking with special union belt.

2、It is a closed circulating system with such a flow:inner drum-pipeline-fan-dust collector-pipeline-inner drum.The dust engendered due to electrostatic during the leather milling process can be sucked into the dust-collecting box continuously.
3、The interior humidity can be set according to different kinds of leather.Having undergone the flow of spraying humidity control and dehumidifying-intermittent spraying,the leather will not only reduce caking,shrinking,curling and hardening so as to minimize the local difference but also improve the fullness,tenderness,ductility and appearance as well as visibility of texture.Meanwhile,the area that has been shrunk through the drying process might be recovered.

4、For the temperature control system:can be set according to different kinds of leather.After the process of automatic elevation of temperature--air-change for temperature control—temperature reduction through cooling,it is good for overcoming the negative effect of the temperature at different seasons or surroundings.

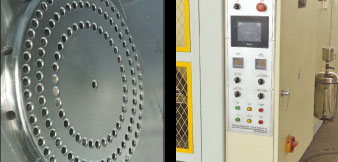

5、For the electrical system: All the technical parameters are tangible by hand at the man-machine interface and convenient for modification and adjustment so that the working condition and the variation of temperature, humidity, time and the related data can be seen at the interface.And it has multiple safety protection and alarming functions.

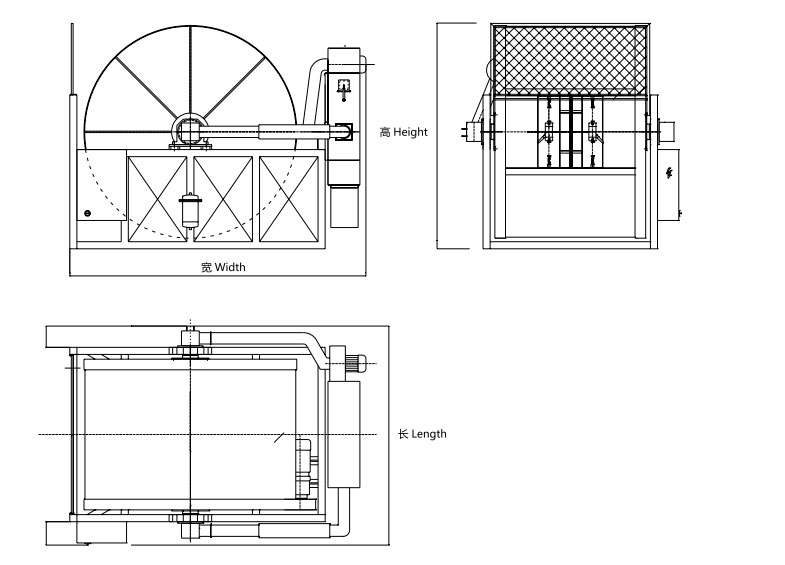

Model & Size		GEGS-250×120	GEGS-270×180	GEGS-300×210	GEGS-350×230
Diameter	mm	2500	2700	3000	3500
Width	mm	1200	1800	2100	2300
Volume	m3	4.55	8.43	12.44	18.95
Loading capacity	kg	180	340	500	760
Drum speed	rpm	15-22	15-22	15-20	15-18
Motor power	kw	7.5	11	11	15
Heating power	kw	9	9	9	9
Fan power	kw	3	3	3	3
Door size	mm	500×600 vertical	900×750 horizontal	1000×800 horizontal	1200×800 horizontal
Humidity control range	mm	2200	2800	3090	3220
Outline dimension(Width)	mm	3950	4150	4430	4840
Outline dimension(Height)	mm	2700	2900	3200	3880
Total weight	t	2.5	3.5	4.5	5.5
